Cable Drop
With a simple and compact structure, the drop cable offers high accountability to your network. In addition, it represents a low-cost cable for installation and maintenance.
Solicitar a ficha técnica
Receber novidades deste produto

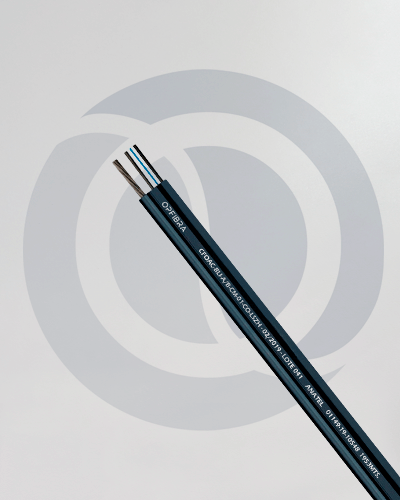

With a simple and compact structure, the drop cable offers high reliability to your network. In addition, it represents a low-cost cable for installation and maintenance.
Its structure is defined by a core that supports up to 1 BLI A/B fiber – (ITU-T G.657) which will guarantee low levels of loss in small bending radii (Microbending),
avoiding fiber breakage with handling.
The metal carrier makes it easy to suspend the cable.
The tensile members are metallic and their outer cover is designed with flame retardant thermoplastic material.
| Tipo de fibra | G.657A2 | |
| Miembro de tracción | Ø0.50mm x 2 pcs | |
| Chaqueta | COG | |
| Mensajero metálico | Alambre de acero fosfotizado
Ø1.0mm |
|
| Tamaño del cable (mm) | 5.0±0.2 x 2.0±0.2 | |
| Radio de curvatura | Dinámica | ≥20×Cable Diameter |
| Estático | ≥10×Cable Diameter | |
| Voltaje máximo de instalación (N) | 600 | |
| Compresión (N) | 2000/10cm | |
