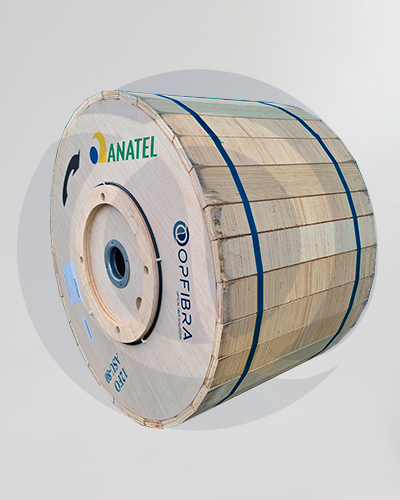

Cable ASU

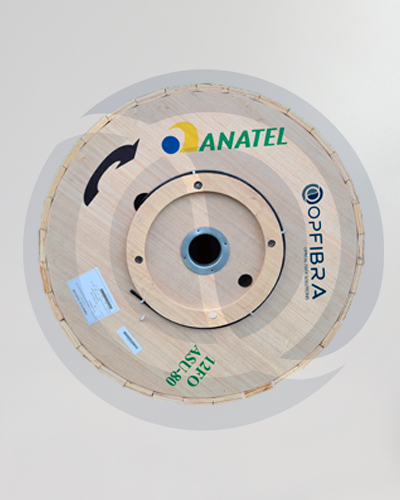

Cable ASU - Imagem 2

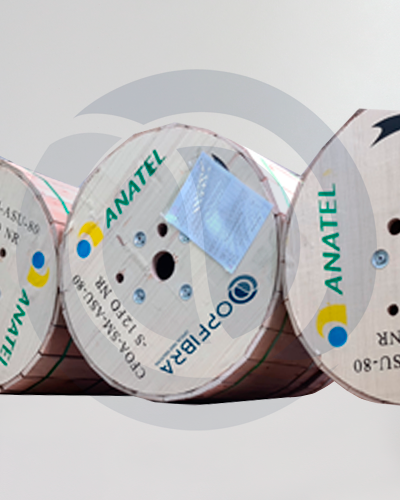

Cable ASU - Imagem 3

Cable ASU

Categoria: CABLES

1-12 color fiber cores
Non-metallic self-supporting element
Materials with good performance

Solicitar a ficha técnica

Receber novidades deste produto

Compact structure
Capable of being finished on site
All dielectric structure, resistant to electromagnetic interference
Easy to strip, splice, simplified installation and maintenance

Material	Fiber type	UIT-T G.652D
	Loose tube	PBT (polybutylene terephthalate)
	FRP force member	(fiber reinforced plastic)
	Outer jacket	PE (Polyethylene)
	Colors 1 – 12 colors
	Light*	50 Meters		120 Meters
Diámetro	Element	± 0,-05 mm Φ		Φ2,3 ± 0,05 mm
	Loose tube	Φ 2,1 ± 0,1 mm		Φ2,3 ± 0,1 mm
	Cable	Φ 6.2 ± 0.3 milímetro	Φ6.6 ± 0.3 milímetro	7,4 ± 0,3 mm
Cable weight		50 kg/km		55kg/km
Diameter		850 N		1500 N
*: Maximum wind speed: 25 m/s, without ice formation.
