CTO for inline fixation
- IP65
- PC+ABS material
- ik duration – 1000 20 ++
- Division of functions into 4 bases
- Sealing rubber for both bases

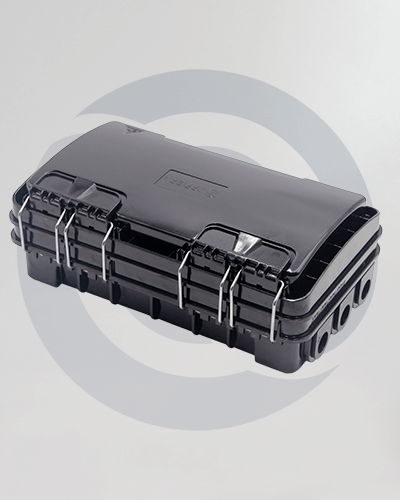

- 2 reinforced galvanized steel latches
- 16 drop cable entries with independent sealing rubber
- 3 inputs and 3 outputs for AS-ASD cables with
- Independent sealing rubber + 2 anchor points for each entrance and exit.

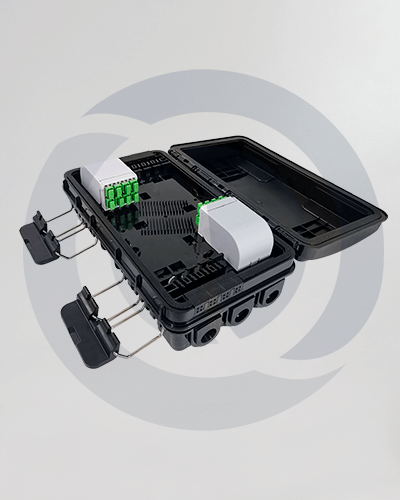

- 2 protective domes for coupler.

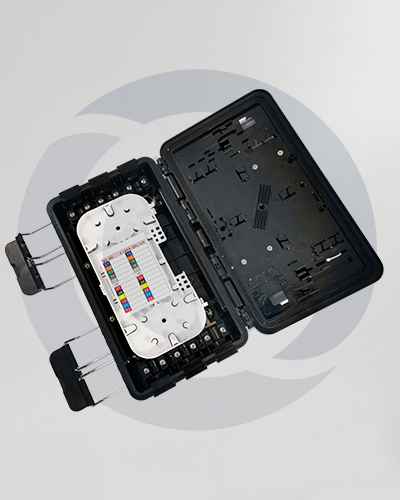

- Option for direct fusion (if you do not want to use the couplers, simply remove the protective domes and use the slots to accommodate the splice protectors)
Solicitar a ficha técnica
Receber novidades deste produto
OPFIBRA’s new CTO was developed to facilitate optical distribution and amendments, reducing costs and optimizing time and space. This is possible because its structure provides 16 service ports + 24 cable bypass joints (AS / ADSS / ASU) even in networks with crowded poles.

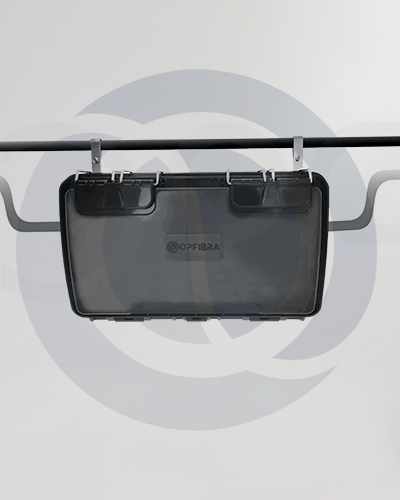

The CTO has 3 levels of anchoring on the cable, facilitating its installation and reducing the cost of renting the pole1.
All these features included in the same box, following the national norms and standards of electrical companies, provide the best cost x benefit in the structure of the urban optical network.
| Material | PC + ABS |
| Nivel de protección | IP65 |
| Maxima capacidad | 16 entradas de cable de acometida con goma de sellado independiente |
| Peso vacio | 1,8kg |
| Color | Negro |
| Entradas de cables principales | 6 (Ø=6-20mm)
(3 entradas y 3 salidas para cables AS-ASD con goma de sellado independiente + 2 puntos de anclaje para cada entrada y salida). |
| Medidas | A*B*C (mm) 305.5*185.4*110 |
| fusión | si no desea utilice los acopladores, simplemente retire las cúpulas deprotección y use las ranuras para acomodar los protectores de empalme. |
