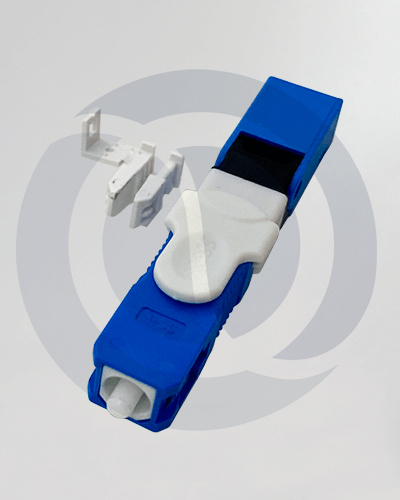

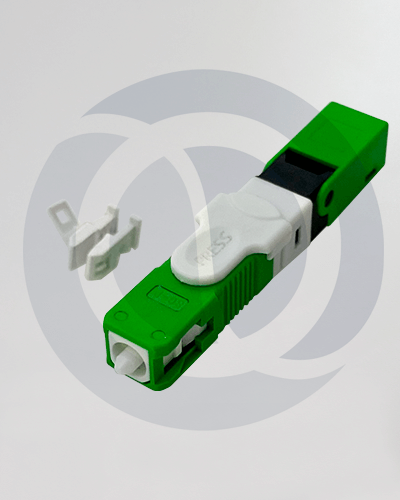

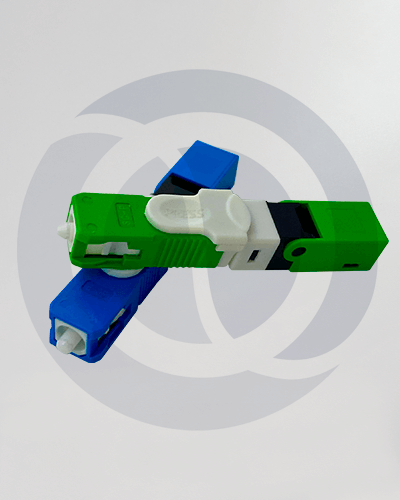

Fast Conector Click
This connector stands out for its quality, ease of use, excellent performance in any fiber optic installation. It is compatible with a wide fiber diameter, accepting flat cables of 2 mm, 3 mm and 3 x 2 mm.
Receber novidades deste produto
The OPFIBRA Click closure field connector is indicated for use in compact cables (drop flat). It is available in APC and UPC polishing, according to the customer’s needs.
The connector has a structure specially developed to facilitate field assembly in just a few steps, in addition to allowing its reuse. This product offers excellent insertion loss (typical 0.2dB) and return loss (>50 dB) values.
This connector stands out for its quality, ease of use, excellent performance in any fiber optic installation. It is compatible with a wide fiber diameter, accepting flat cables of 2 mm, 3 mm and 3 x 2 mm.
| Cable scope | 3.0×2.0mm & 1.6*2.0mm Arc Type Drop Cable |
| Size | 51*9*7.55mm |
| Fiber diameter | 125μm ( 652 & 657 ) |
| Housing diameter | 250μm |
| Mode | SM |
| Insertion loss | ≤ 0.3dB（1310nm & 1550nm) |
| Return loss | ≤ -50dB for UPC, ≤ -55dB for APC |
| Tensile strength | >40 N |
| Temperature | -40 ~ +85 C |
