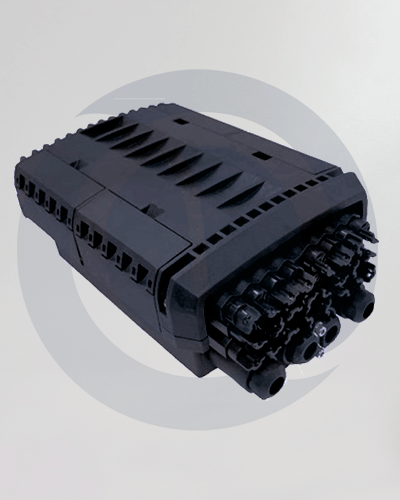

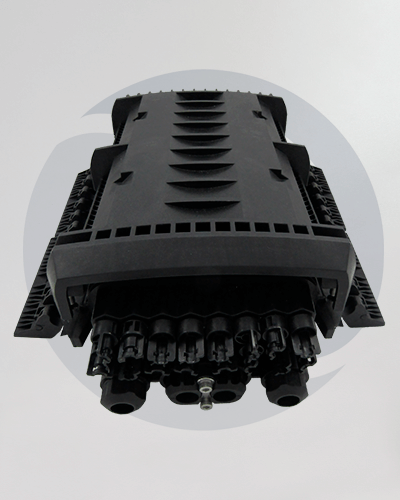

Fiber Optic IP68 Splice Closure
- Detachable adapter panel
- Midspan termination support
- Easy operation and installation

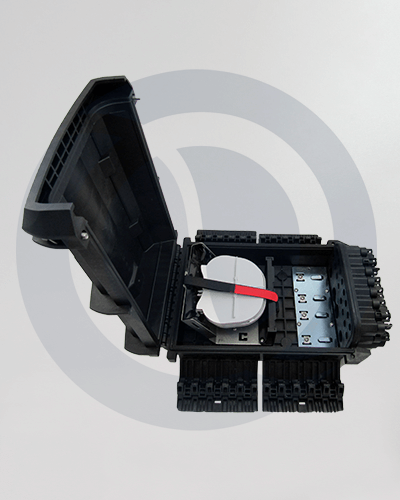

- Rotating and detachable splicing tray for easy splicing
Solicitar a ficha técnica
Receber novidades deste produto
FTTH Drop Cable Type Fiber Optic Splice and Splitter Robust closure features that are tested under harsh conditions and withstand even the most severe conditions of humidity, vibration and extreme temperatures.
Humanized design helps user get a better experience and safer operating environment.
| Model | OPF-CWP-16 | OPF-CWP-24 | |
| Adapter | 16pcs of SC | 24pcs of SC | |
| Cable ports | 1 uncut port | 2 round ports | 1 uncut port |
| Applicable Cable Diameter | 10~16mm | 8~16mm | 10~16mm |
| Drop Cable Ports | 16 ports | 24 ports | |
| Applicable Cable Diameter | 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable and 4mm cable or 7mm cable | ||
| Dimension | 388*242*128mm | ||
| Material | Modified polymer plastic | ||
| Sealing structure | Mechanical sealing | ||
| Color | Black | ||
| Maximum Splicing Capacity | 48 fibers (4 trays, 12 fibers/tray) | ||
| Applicable Splitter | 1pc of 1×16 PLC Splitter or 2pcs of 1×8 PLC Splitters | ||
| Splitter | IP68 | ||
| Impact Test | IK10 | ||
| Pull Force | 100N | ||
| Midspan Entry | yes | ||
| Storage (Tube/Micro Cable) | yes | ||
| Net Weight | 4 kg | ||
| Gross Weight | 5 kg | ||
| Packing | 540*410*375mm (4pcs per carton) | ||
